P2R Stage 1 Billet Hypercams
P2R Stage 1 Billet Hypercams
Regular price
$1,475.00
Regular price
$1,499.99
Sale price
$1,475.00
Unit price
per
Lease for as low as $/week
$1,475.00
Quantity in Stock
16
Product Code
C.2505002.P2R
Couldn't load pickup availability

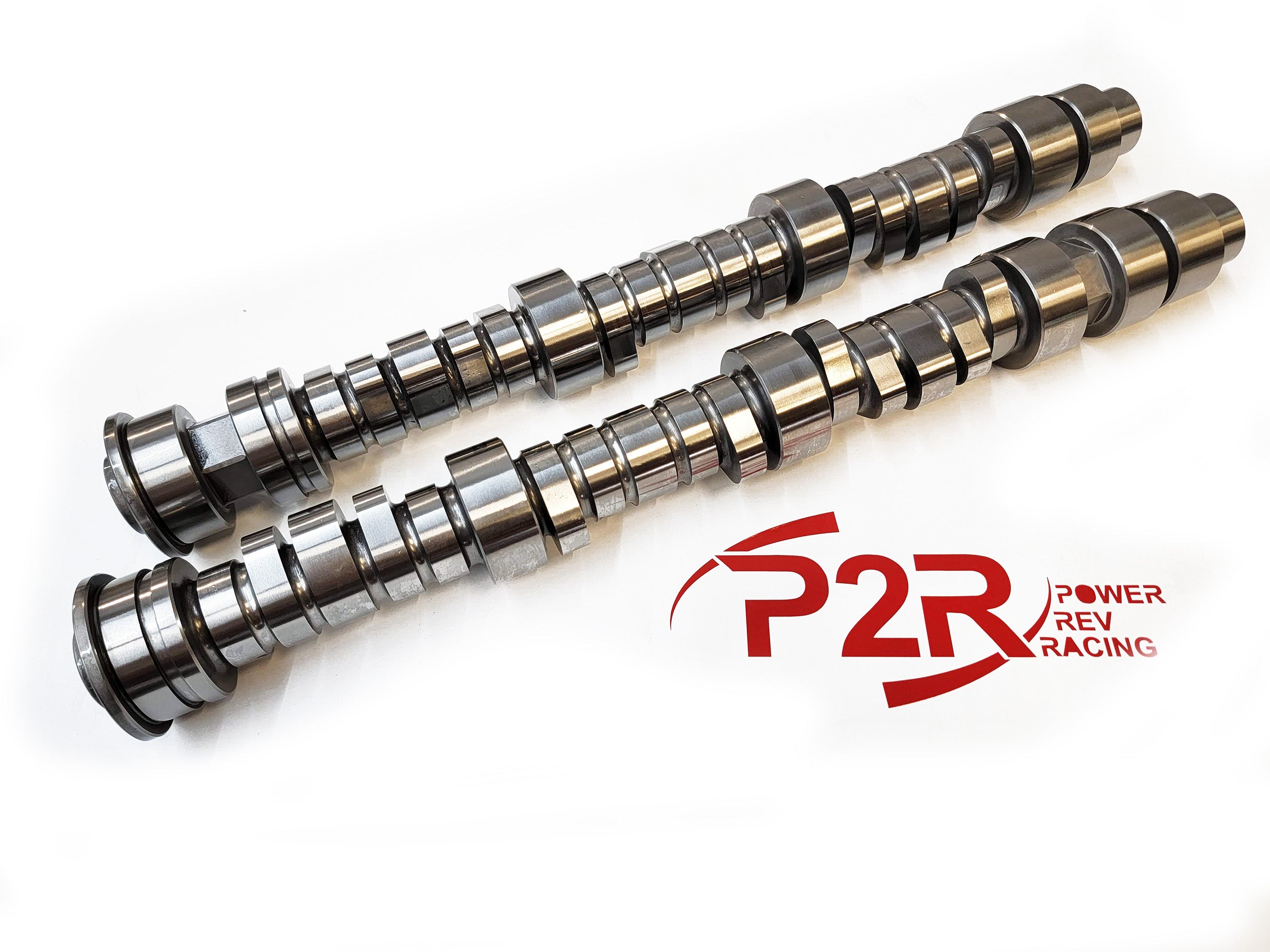

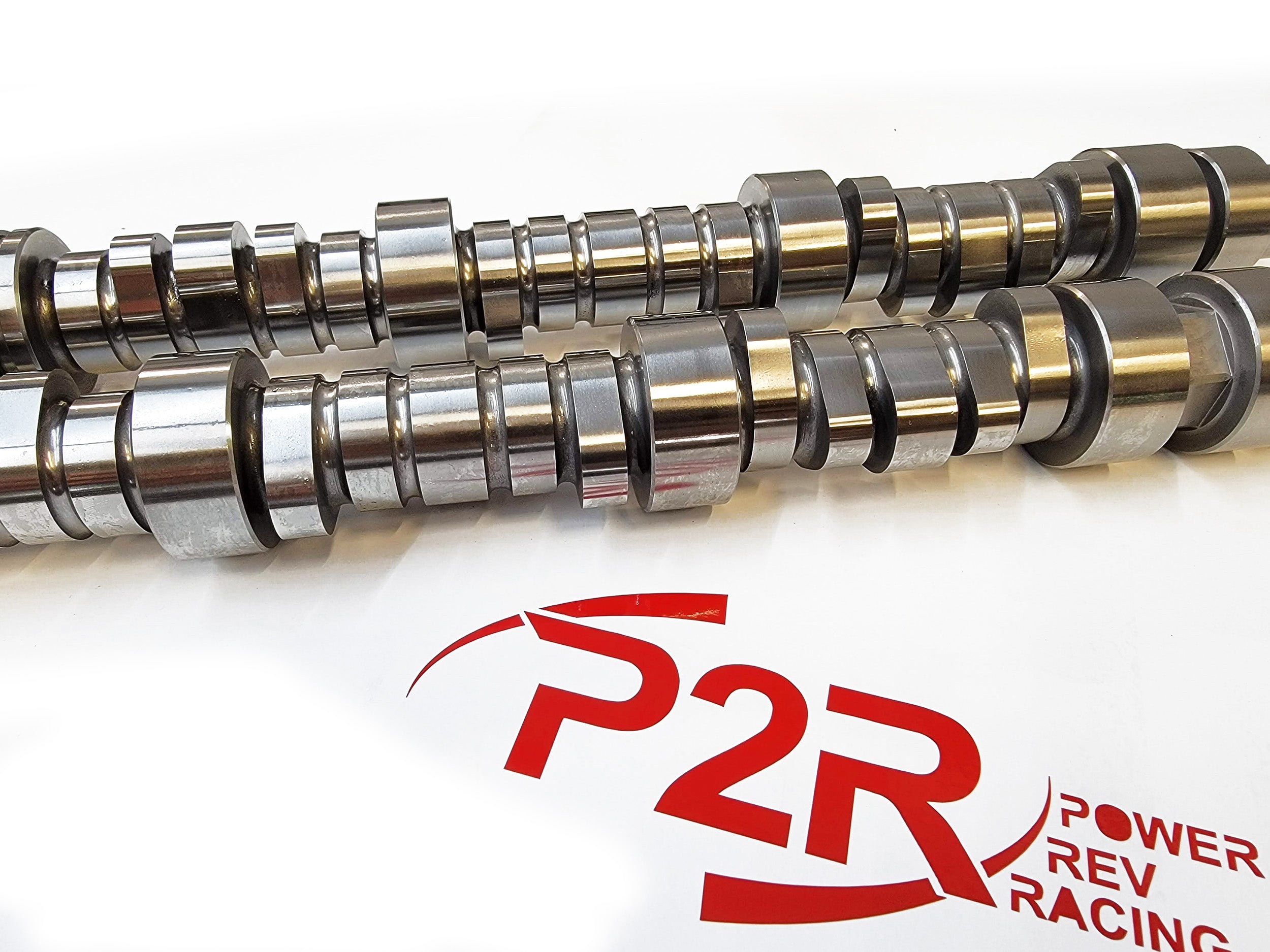

P2R Hypercam series are German made Billet Camshafts that are true drop in Stage 1 camshafts. Drops right in and works with Stock Springs and Retainers. 17hp gain over stock camshafts on a stock engine. Widest possible power band. These Billet camshafts are also a hallow core design weighing in at only 9.5lbs per set compared to OEM camshafts that weight in at 11.7lbs per set.
DESIGNED & ENGINEERED IN GERMANY

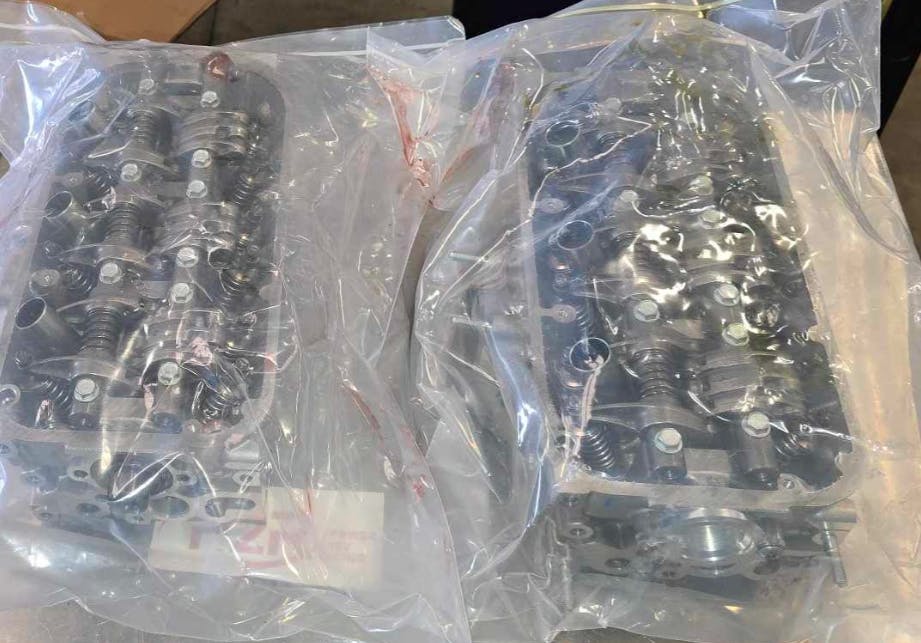

Will fit the following cylinder heads J30A1 (01-02), J32A1, J32A2, J32A3, J35A3, J35A4, J35A6 (05-06) , J35A8, J37A1 (07-09 MDX)

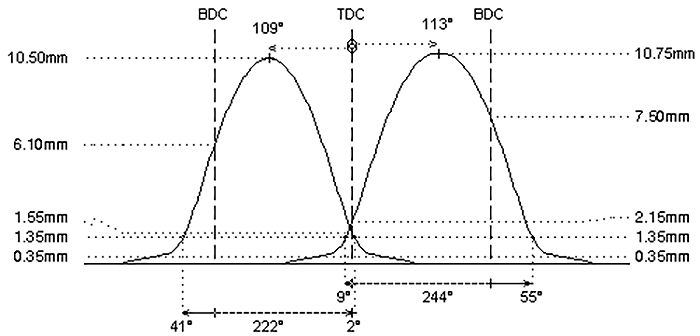

Camshaft Data:
Intake
lash ramp : 0.33mm
duration @ 0.1mm : 298° (238)
duration @ 1.0mm : 244° (184)
valve lift : 10.75mm (9.00)
cam lift : 6.45mm (5.35)
lobe angle : 113° (109)
timing @ 1.0mm : 9° / 55°
valve lift @ TDC: 2.15mm (0.55)
fitted load / length : 21kg @ 43.0mm
max. load / lift : 56kg @ 10.3mm
Exhaust
lash ramp : 0.35mm
duration @ 0.1mm : 298° (238)
duration @ 1.0mm : 223° (223)
valve lift : 10.50mm (10.50)
cam lift : 6.55mm (6.55)
lobe angle : 109° (109)
timing @ 1.0mm : 41° / 2°
valve lift @ TDC: 1.55mm (1.55)
fitted load / length : 26kg @ 43.0mm
max. load / lift : 67kg @ 11.0mm
